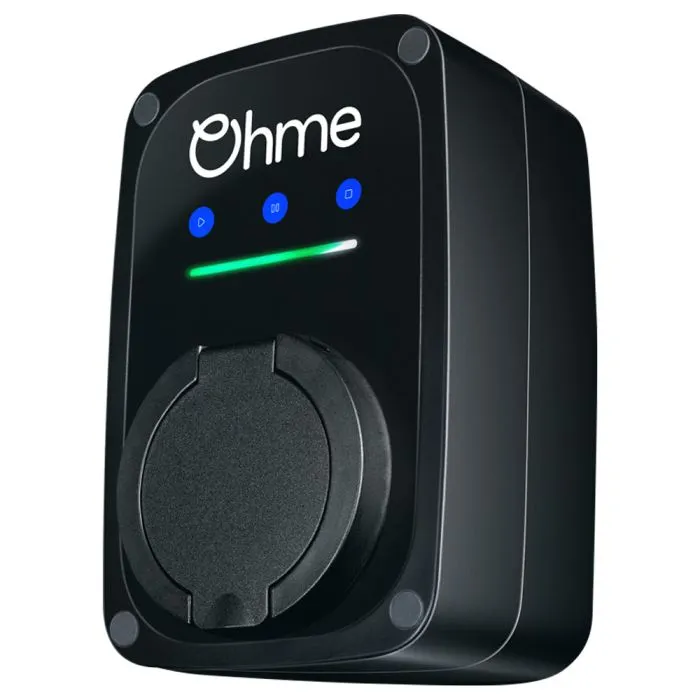

Ohme EPOD 7.4kW Type 2 Compact EV Charger
Product Overview
- Powerful and Efficient: Delivers 7.4kW, providing faster charging than a standard 3-pin plug, ideal for overnight charging.
- Smart Tariff Compatibility: Integrates seamlessly with energy providers like Octopus and OVO for optimized smart EV tariffs.
- Versatile Control Options: Manage charging sessions using the Ohme smartphone app or directly via the charger buttons.
- Solar-Friendly: Supports charging using excess solar energy for eco-conscious drivers.
Electrical Specifications
- Power Output: 7.4kW with a 32A max rated current.
- Voltage: Single-phase 230V AC, 50/60 Hz.
- Earth Protection: Built-in RCD Type A (30 mA) and PEN fault detection.
- Charging Mode: Mode 3 with a Type 2 socket compliant with IEC62196 standards.
- Status Indication: Multi-color LED strip (green, blue, yellow, white, purple) for operational updates.
- Cable Management: Rear or underside cable entry, supporting up to 6mm² conductor size.
Mechanical Specifications
- Compact Dimensions: 230mm (H) x 140mm (W) x 100mm (D), lightweight at 1.5kg.
- Mounting Options: Suitable for wall or post installation, indoors or outdoors.
- Temperature and Humidity: Operates between -25°C and 45°C with 5-95% RH.
- Durable Build: Fire-rated enclosure (V-0 UL94), IP54 ingress protection, and IK08 impact resistance.
- Finish: Sleek black design.
Connectivity and Technology
- Network Connectivity: Equipped with a 3G/4G multinet SIM (covered for the first 3 years).
- Control Options: Manage via the app or built-in buttons for flexibility.
- Advanced Features: Includes dynamic load balancing, solar charging, and over-the-air software updates for enhanced functionality.
This charger is a robust, smart, and eco-friendly solution for EV owners seeking flexibility and
